Information details

连栋薄膜温室4

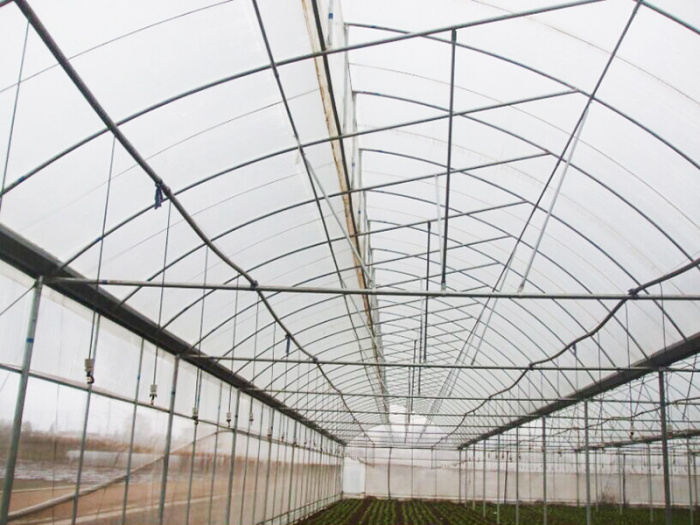

The span of the continuous film greenhouse is 8 meters, with a spacing of 4 meters. The main steel structure of the greenhouse is made of hot-dip galvanized tubes and profiles, and the top and the surrounding area are covered with film or thick polycarbonate (PC) hollow boards, which have a high transmittance of light and a good heat preservation. The greenhouse can be equipped with external sunshade system, internal sunshade system, fan wet curtain cooling system, water-fertilizer integration system, irrigation system, seedbed, supplemental light system, etc. The control system of the greenhouse is centralized electric control. It can be used as seedling greenhouse, or planting of flowers, vegetables, fruit trees and aquatic and animal husbandry, and can also be used for display, sightseeing, scientific research and so on.

The specifications and dimensions are shown in the table below.

Greenhouse type/parameters	span(m)	bay (m)	Column height (m）	Ridge height (m)
Multi-span film greenhouse	8.0-9.6	4.0-5.0	3.0-5.0	5.0-7.0

General design technical parameters:

Wind load resistance	0.4KN/m²
Snow resistance load	0.35KN/m²
Greenhouse constant load	10Kg/m²
Greenhouse with large drainage capacity	140mm/h
Hanging load	15Kg/m²+
